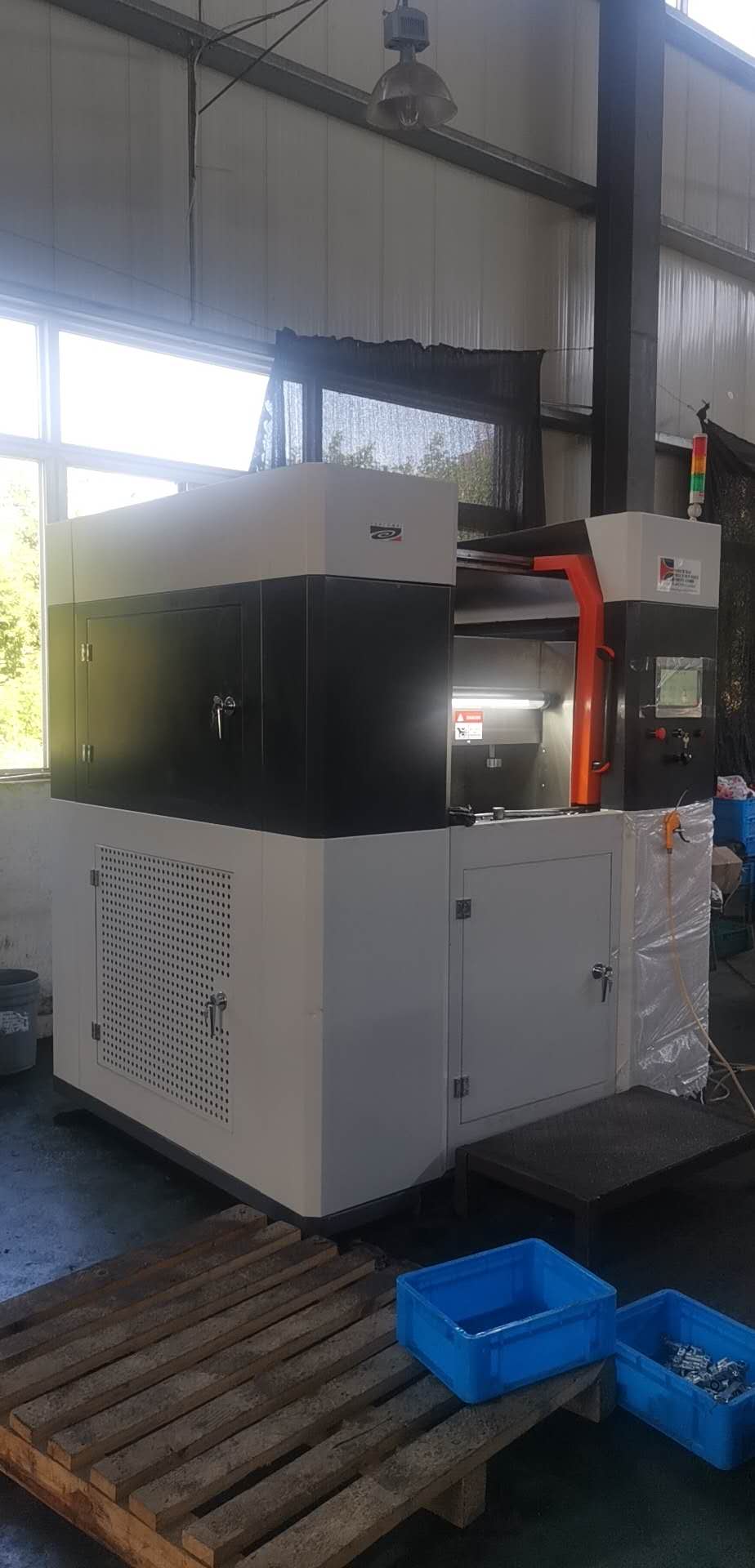

The function of complex workpiece deburring equipment
Wide adaptability, high processing efficiency, and convenient operation. The complex fluid polishing and deburring machine tool uses abrasives with different particle sizes and viscosities, selects appropriate process parameters, and after 3-5 minutes of fluid polishing under chamber pressure, the surface roughness of the parts can be improved by 2-3 levels from the original level, with a maximum roughness of 0.05 and accuracy controlled at the micrometer level. The abrasive fluid polishing machine is not only suitable for single piece production, but also for large-scale processing and production with corresponding fixtures.

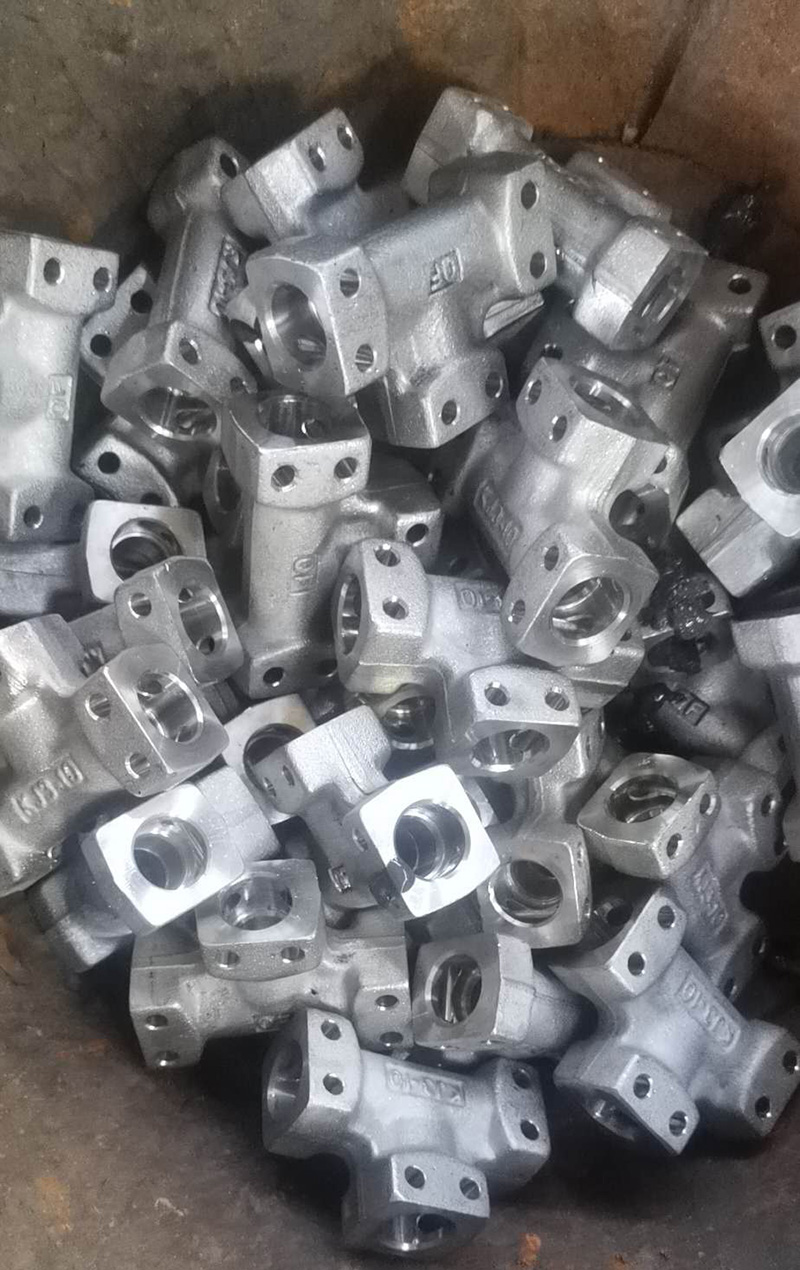

Specialized in handling concealed cross holes, irregular holes, step holes, and various parts with complex internal shapes on parts, fluid deburring processing is carried out on small holes, narrow gaps, cross holes, etc. of various workpieces that cannot be directly processed with traditional tools. This is used as a finishing process for mechanical processing such as broaching machines, deep hole drilling machines, boring machines, grinding machines, and precision casting
Abrasive is one of the core technologies of fluid polishing machines, and the grinding abrasive indicators include abrasive viscosity, abrasive adhesion, and tensile strength. Grinding abrasives can be divided into abrasives with different viscosities based on their viscosity. The abrasive of Weilima abrasive flow is imported from Germany, with a long service life, high processing accuracy, and particularly outstanding results.
